Haidl Products

MASC Duo Rollformer Pro-Touch, 200 mm / 350 mm

Name: MASC Duo Rollformer Pro-Touch, 200 mm / 350 mm
Brand: Haidl Products
Price: 700.91 EUR
Availability: InStock

€700,91 EUR

Sale Sold out

Shipping calculated at checkout.

Insertion depth 200 mm 350 mm

Product variants

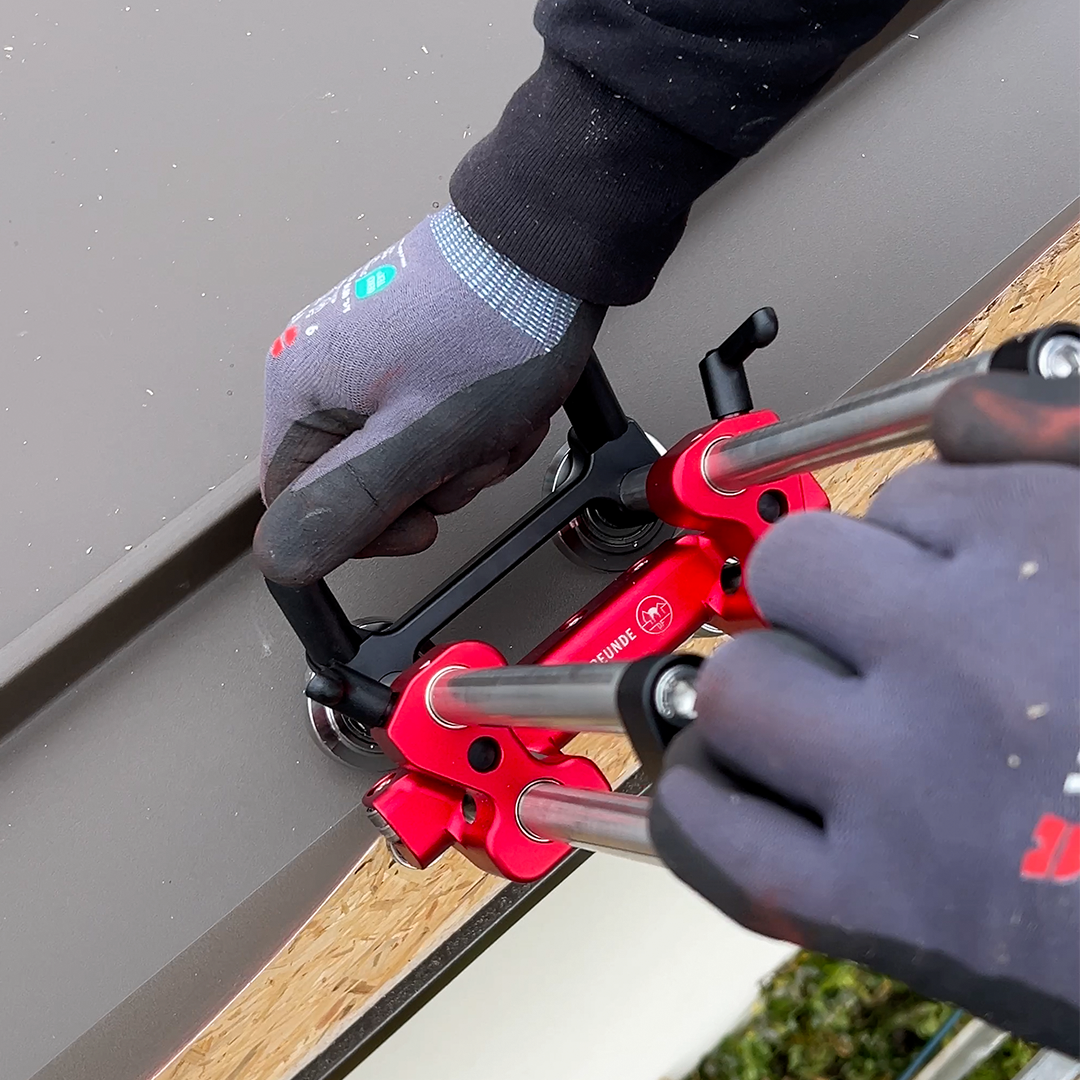

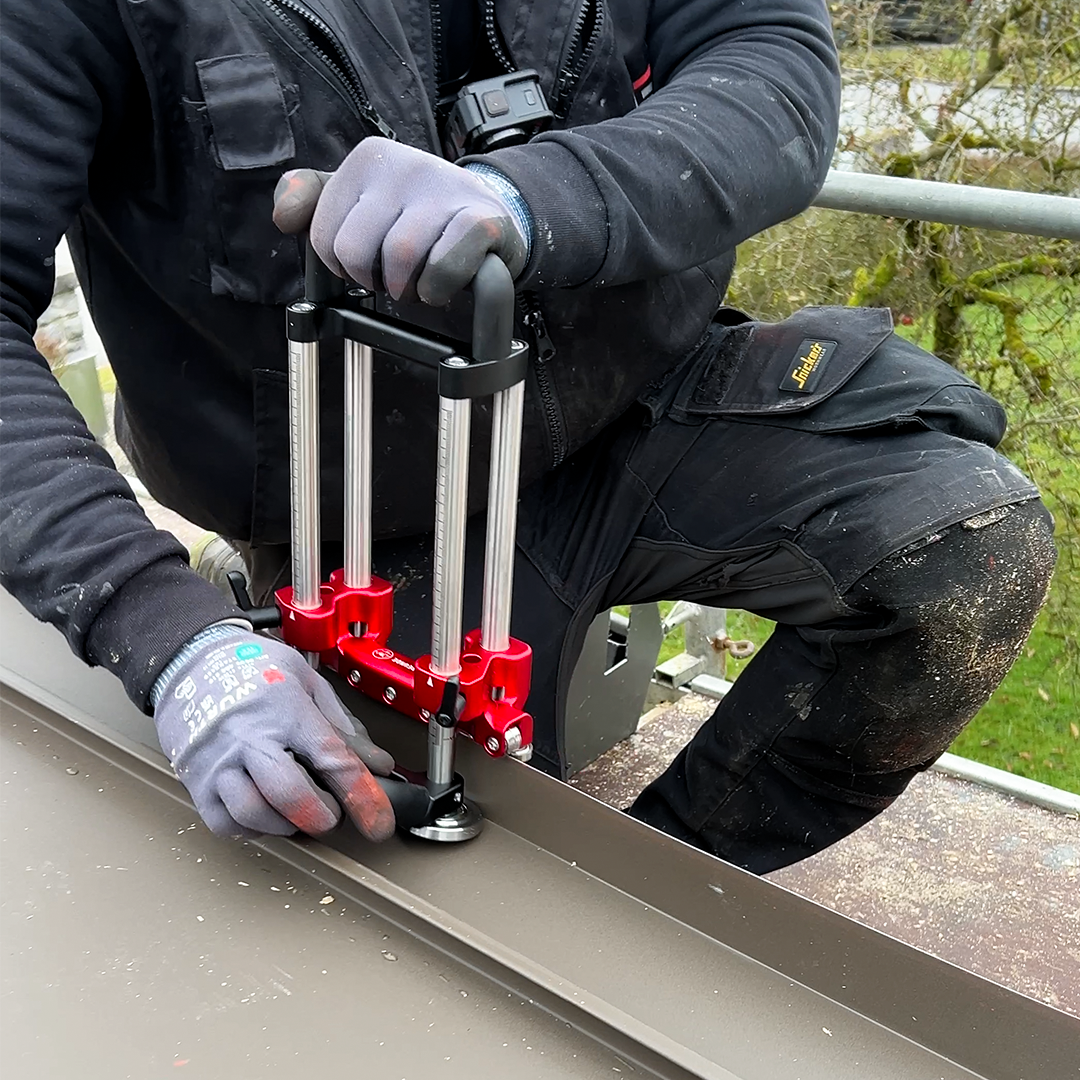

Two bending rollers for long profiles and high upstands. The Duo Rollformer Pro-Touch folds sheet cleanly up to 100° – designed for upstands on long profiles. The Pro-Touch handle sits snugly in the hand, and the large axle spacing of the bending rollers makes profile panels possible, for example.

TWO SIZES – CHOOSE YOUR INSERTION DEPTH

200 mm	Insertion depth 5–200 mm. For upstands on long profiles and high upstands.
350 mm	Insertion depth 5–350 mm. The greatest reach – for particularly deep upstands on long profiles.

WHAT YOU NEED IT FOR

Upstands up to 100° on long profiles – clean and repeatable by hand
Particularly suitable for high upstands
Make profile panels: the large axle spacing of the bending rollers makes it possible
Comfortable handling via the Pro-Touch handle
Insertion depth depending on size from 5 mm up to 200 or 350 mm

TECHNICAL DATA

Upstand	up to 100°
Insertion depth	5–200 mm / 5–350 mm (depending on size)
Particularly suitable for	long profiles and high upstands
Handle	Pro-Touch
Special feature	large axle spacing of the bending rollers – for making e.g. profile panels

GOOD TO KNOW

The size determines the maximum insertion depth – i.e. how far from the sheet edge you can set the fold. For particularly deep upstands choose the 350
The Duo Rollformer is only available from 200 mm – for tight bending work with a compact tool body, the Single Rollformer Pro-Touch 100 mm is the right choice
